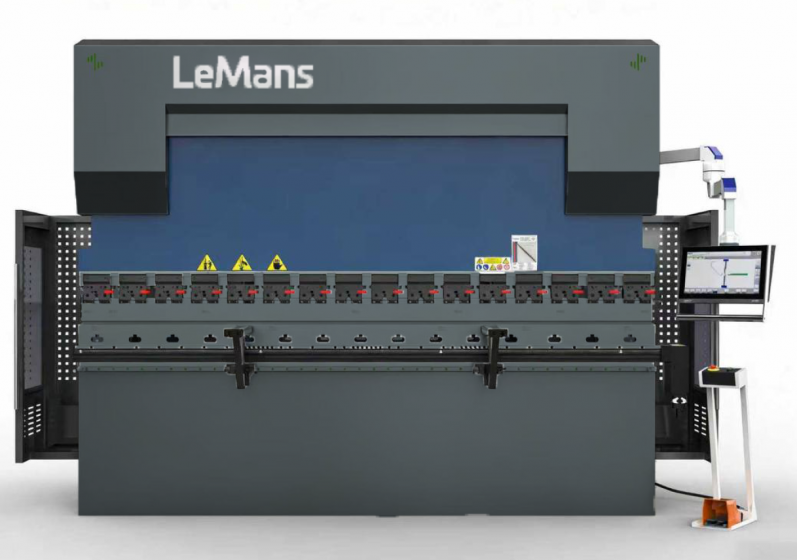

Lemans LFB20032

•  Bending force of the machine ≥ 200 t
•  Bending length ≥ 3200 mm
•  Distance between columns ≥ 2700 mm
•  Ram stroke ≥ 400 mm
•  Daylight (distance between upper beam and table) ≥ 600 mm
•  Throat depth ≥ 500 mm
•  Table height ≥ 900 mm
•  Approach speed ≥ 160 mm/s
•  Return speed ≥ 100 mm/s
•  Bending speed ≥ 10 mm/s
•  Backgauge X axis travel ≥ 700 mm
•  X axis speed ≥ 150 mm/s
•  Backgauge R axis travel ≥ 250 mm
•  R axis speed ≥ 250 mm/s
•  Equipped with CNC control Controller Dellem DA66S 4+1
•  Front support arms — 2 pcs
•  CNC Crowning.
•  Standard bending tool set
•  Standard die (prism)
